Technical Specs

House Info

Theatre Type

• Proscenium

Seating

• Main Floor: 1,125 seats
• Upper Level: 784 seats
• Orchestra Pit: 43 seats
• Handicapped: 14 spaces
• Total Capacity: 1,966

House Attributes

• Flooring raked on gentle slope
• One suspended balcony

Telephone Numbers

• Administration Office: 815-726-7171
• Technical Director: 815-726-7171 ext 211
• Backstage Number: 815-726-7171.ext 219
• FAX Number: 815-726-0352

Theatre Location

• Front Entrance: 102 N. Chicago Street
• Backstage Entrance: 121 N. Scott St.
• Backstage Location: one block east of Chicago St., (between Van Buren & Clinton Streets)

House Opening Times

• Exterior Lobby Doors to Foyer: One Hour Before Performance
• Interior Lobby Doors to Seats: 30 Minutes Prior to Performance

House Union

• I.A.T.S.E. Local 124

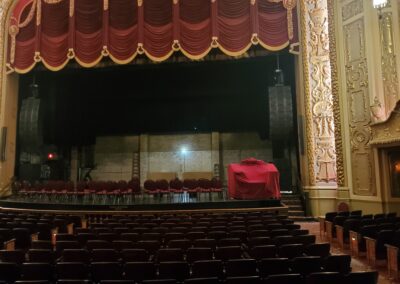

Stage Info

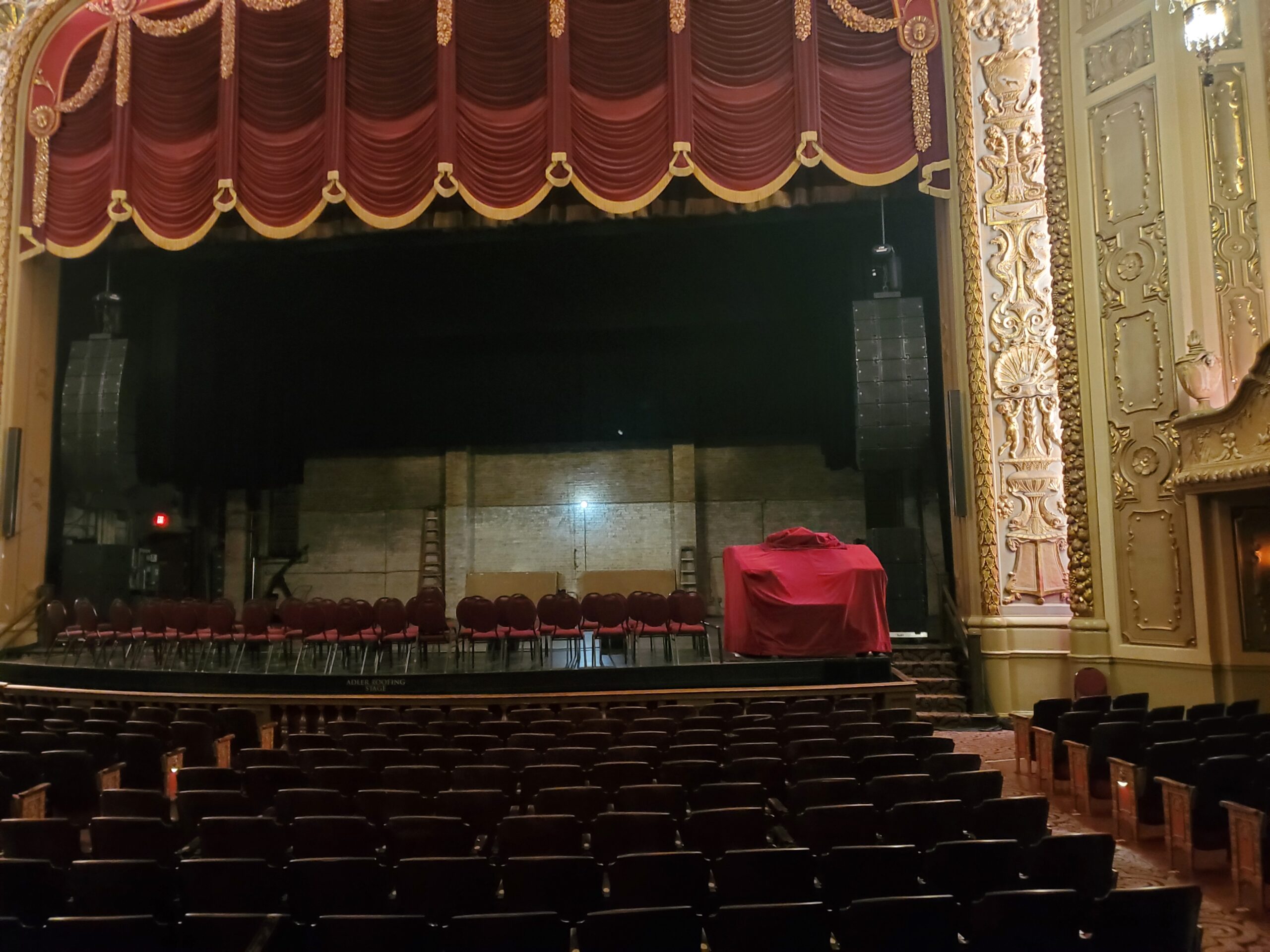

Proscenium:

• 52’ Wide X 23’6 High
• Stage Dimensions
• Right Wing: 9’-6”
• Left Wing: 9’-0”
• Back Wall to Plaster Line: 29’-6”
• Stage Height from Main Floor: 3’-6”

Stage Attributes

• Flat Deck
• Trapped
• Oak Flooring
• Black

Height to Grid

• 64’-0”

Loading Doors

• Stage Level
• Height: 8’-8”
• Width: 4’-7”
• Ground Level Load-in, Requirement: Ramps or Lift Gate

Crossover

• Under Stage Through Green Room
• Upstage of Black is narrow but usable Apron

Apron

• 3’-0” downstage of plaster line
• curved
• access from house on SR and SL at proscenium

Pit

• Extension at Center: 12’-0” (curved)
• Width at Stage Edge: 34’-0”
• Capacity: 20 musicians with upright piano
• Motorized Lift Jack from stage level to 8’-0” 13’-0” below stage level
• Barton Grande Theatre Pipe Organ, separate motorized lift, permanently installed

Fly System

• Counterweight Line Sets: 37
• Carrying Our Goods: 18
• Free Lines: 19
• Batten Length: 54’-0”
• Electrical Winch Operation on 4 Electrical Battens
• Weight Capacity: 1100lb arbor capacity, and 2000 lbs on the electric winches
• Side Frame Electrics: 2, SR and SL, 3 pipes each
• Main Act Curtain: Manual; Guillotine

Soft Goods

• Black Velour Traveling Tormentors: 30’-0” X 12’-0”
• Black Velour Legs: 5 pair, flat 30’-0” X 13’-0”
• Black Velour Borders: 4 each, flat 10’-0” high X 54’-0” wide

Sky Blue Muslin Cyc

• 30’-0” high X 52’-0” wide

Black Velour Travelers

• 2 each, pleated 30’-0” high X 50’-0” wide

Gold Velour Traveler

• 1, pleated, 30’-0” high X 50’-0” wide

Risers

• 4’ X 8’ X 8”: 2
• 4’ X 8’ X 16”: 2
• 4’ X 8’ X 24”: 6
• 4’ X 8’ X 32”: 1
• 3’ X 8’ X 16”: 2
• 3’ x 8’ x 24” : 4
• black skirting available

Ladders

• 30’-0” fully extended A-Frame: 1
• 10’-0” step ladder: 1
• 6’-0” step ladder: 1
• 4’-0” step ladder: 2
• 21’ Extension: 2
• 17’ Extension: 1
• 4’ – 8’ Little Giant: 1
• Genie single man lift, working height of 36’

Instruments

•  Barton Grande Theatre Pipe Organ: 1, excellent condition, original
• 9’ Baldwin Grand Piano: 1, excellent condition
• Electric keyboard in a 6’ white baby grand shell

Miscellaneous

• Iron: 2
• Ironing Board: 2
• Steamer: 1
• Podium: 2
• Backless Stools: 2 black, 4 blonde
• Manhasset Style Music Stands with Lights: 35

•
•
•
•

Artist Facilities

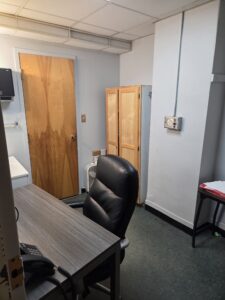

Production Office

• Located off stage right
• Sink, shower and lavatory
• Inside Phone Line: 815-726-7171 ext. 225
• Dedicated Line for direct phone/FAX/modem: 815-726-9943

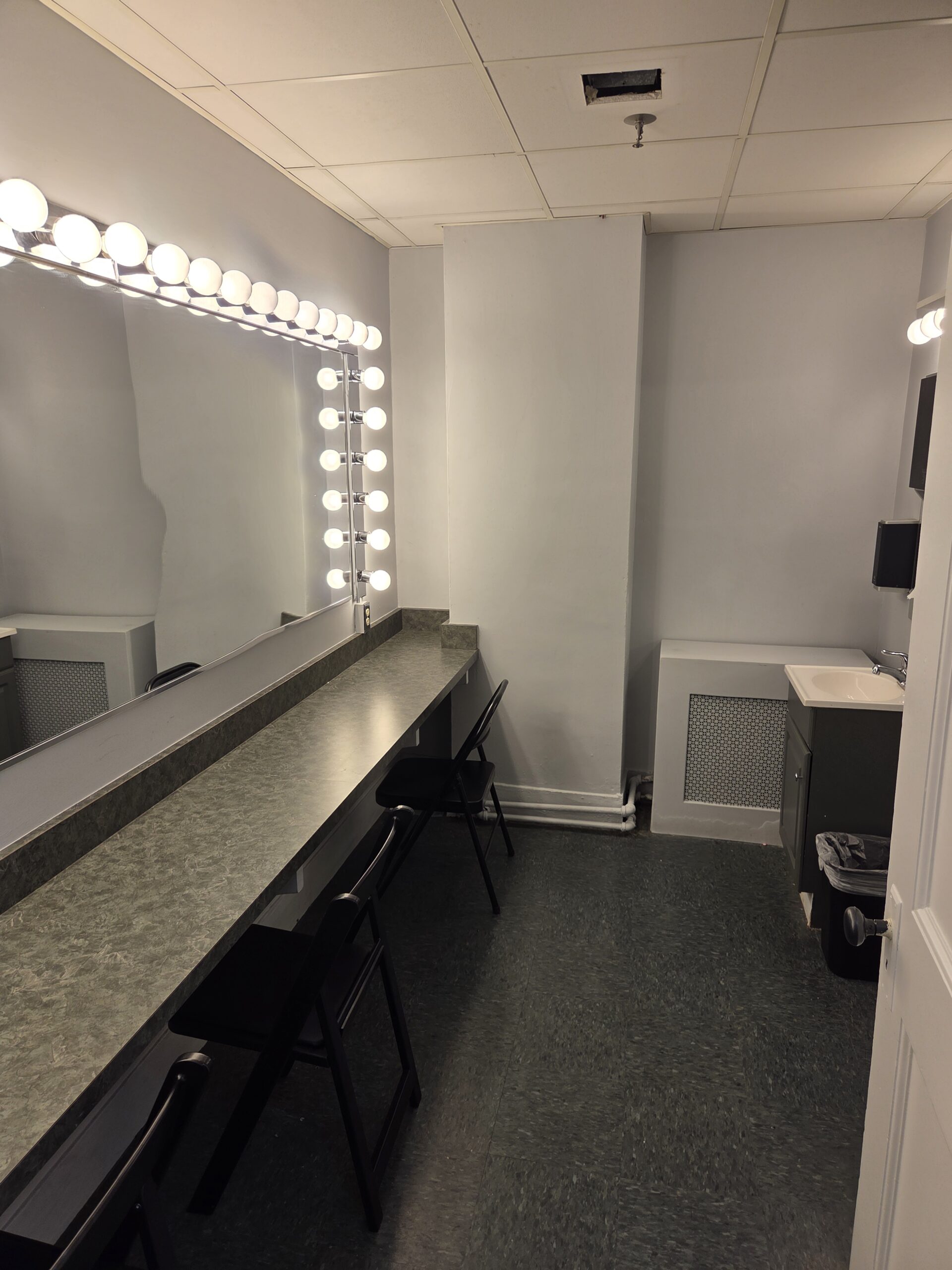

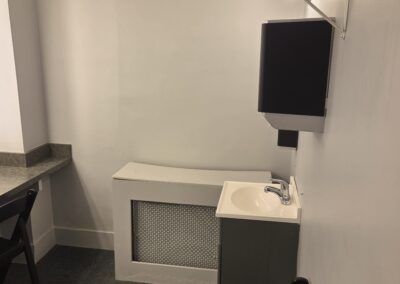

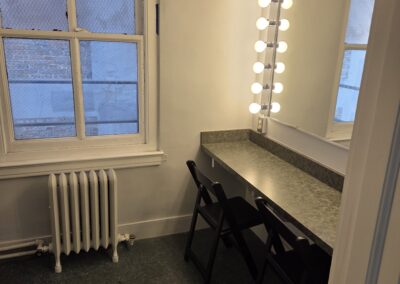

Dressing Rooms

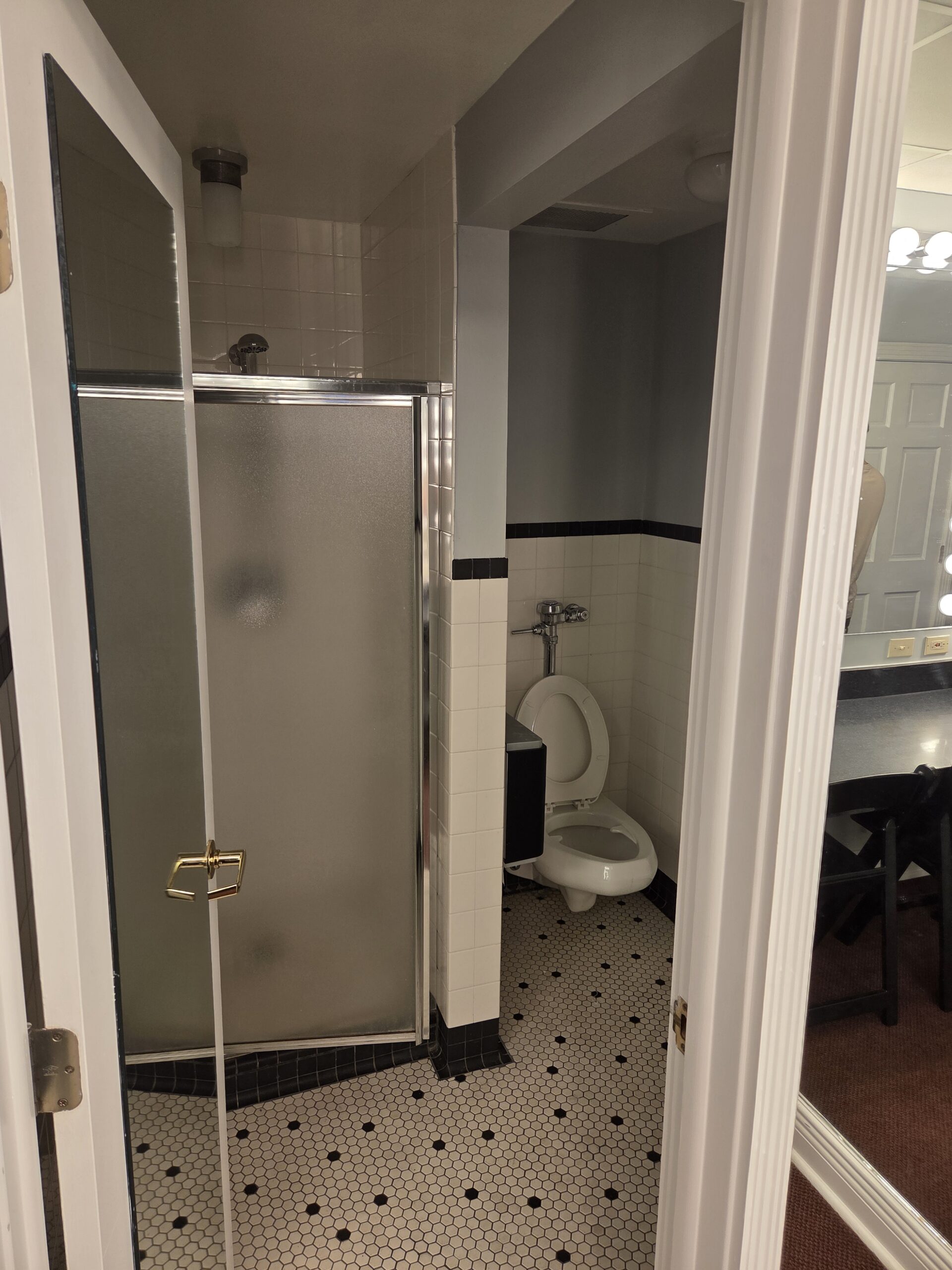

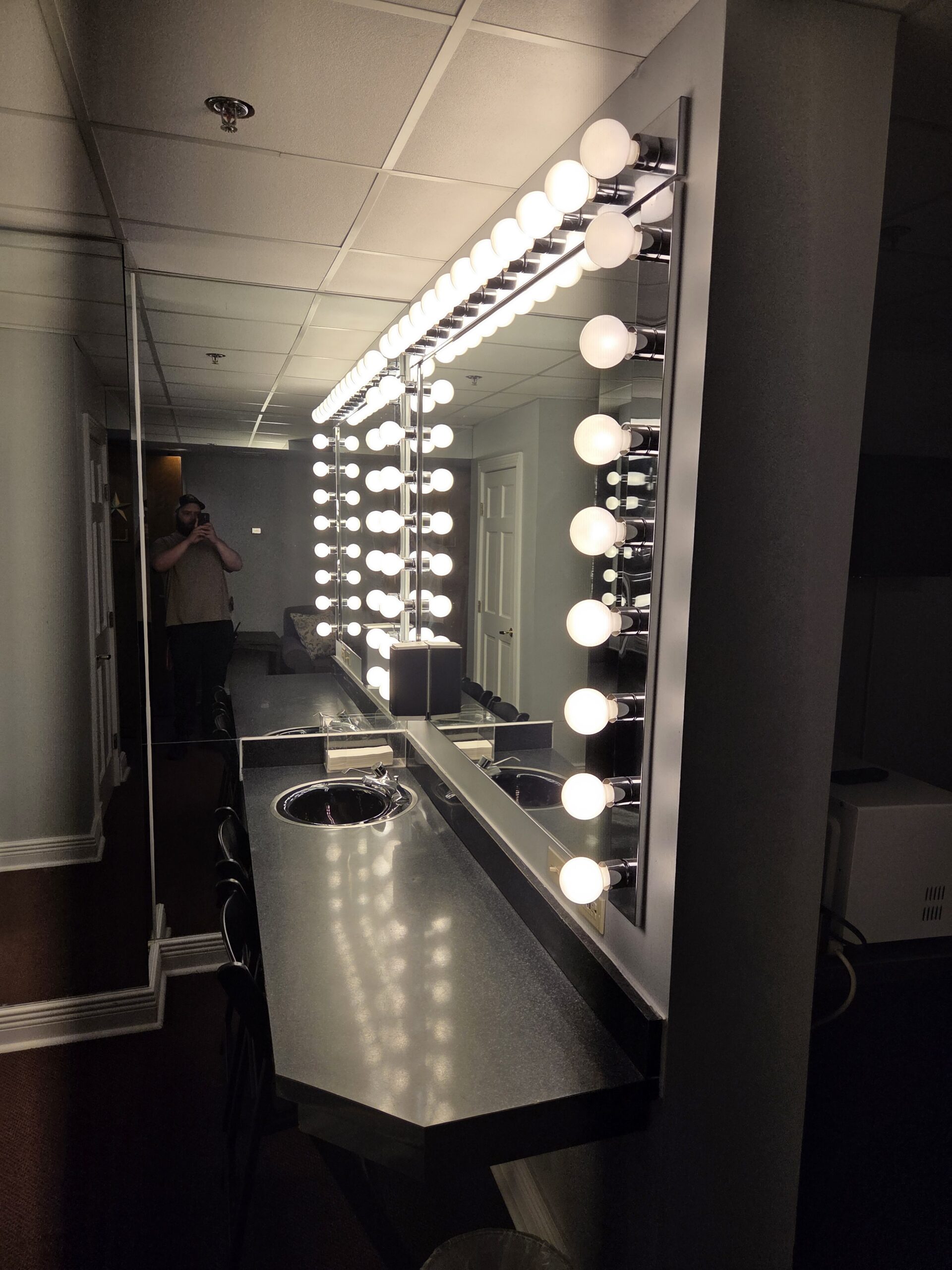

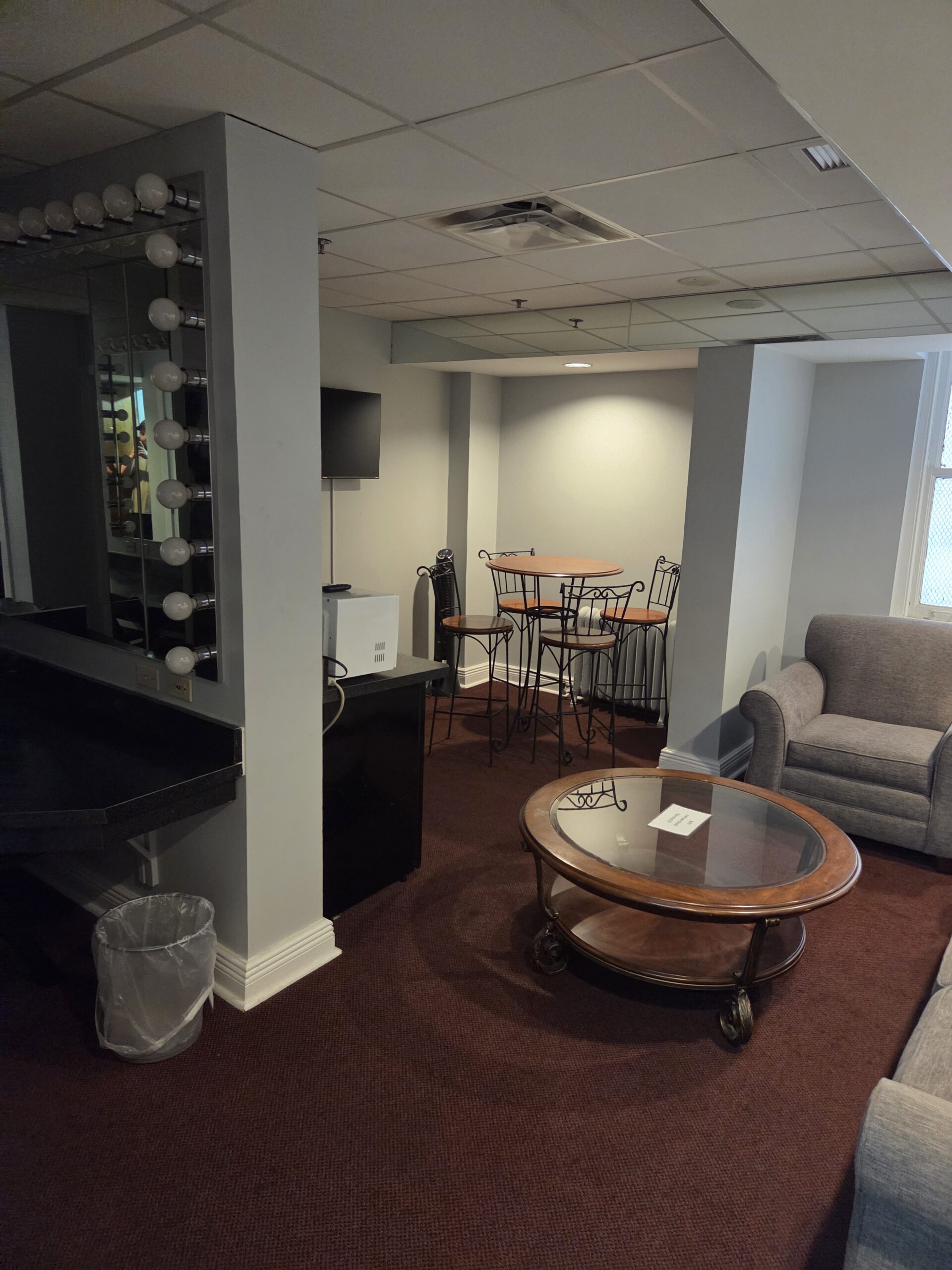

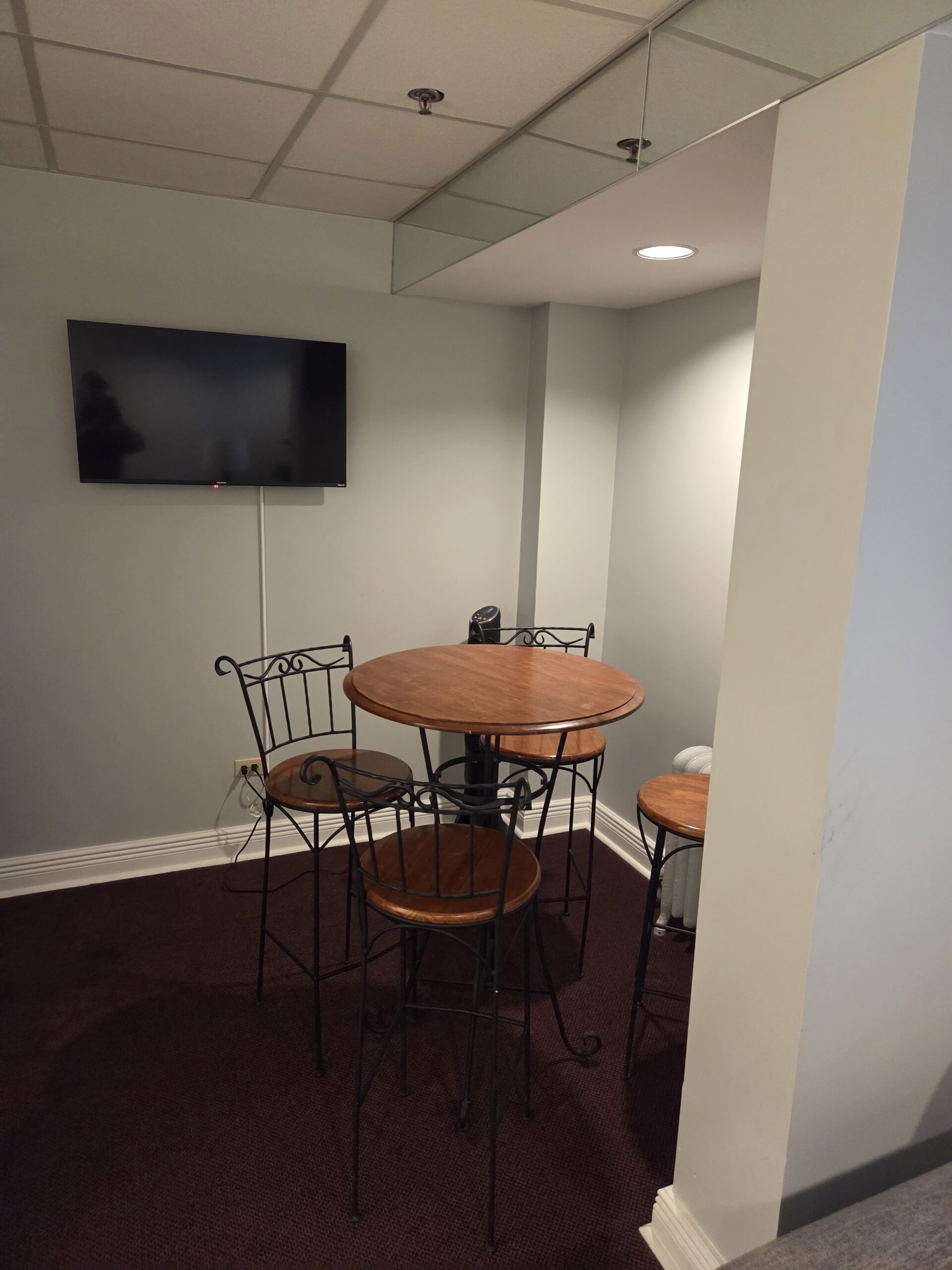

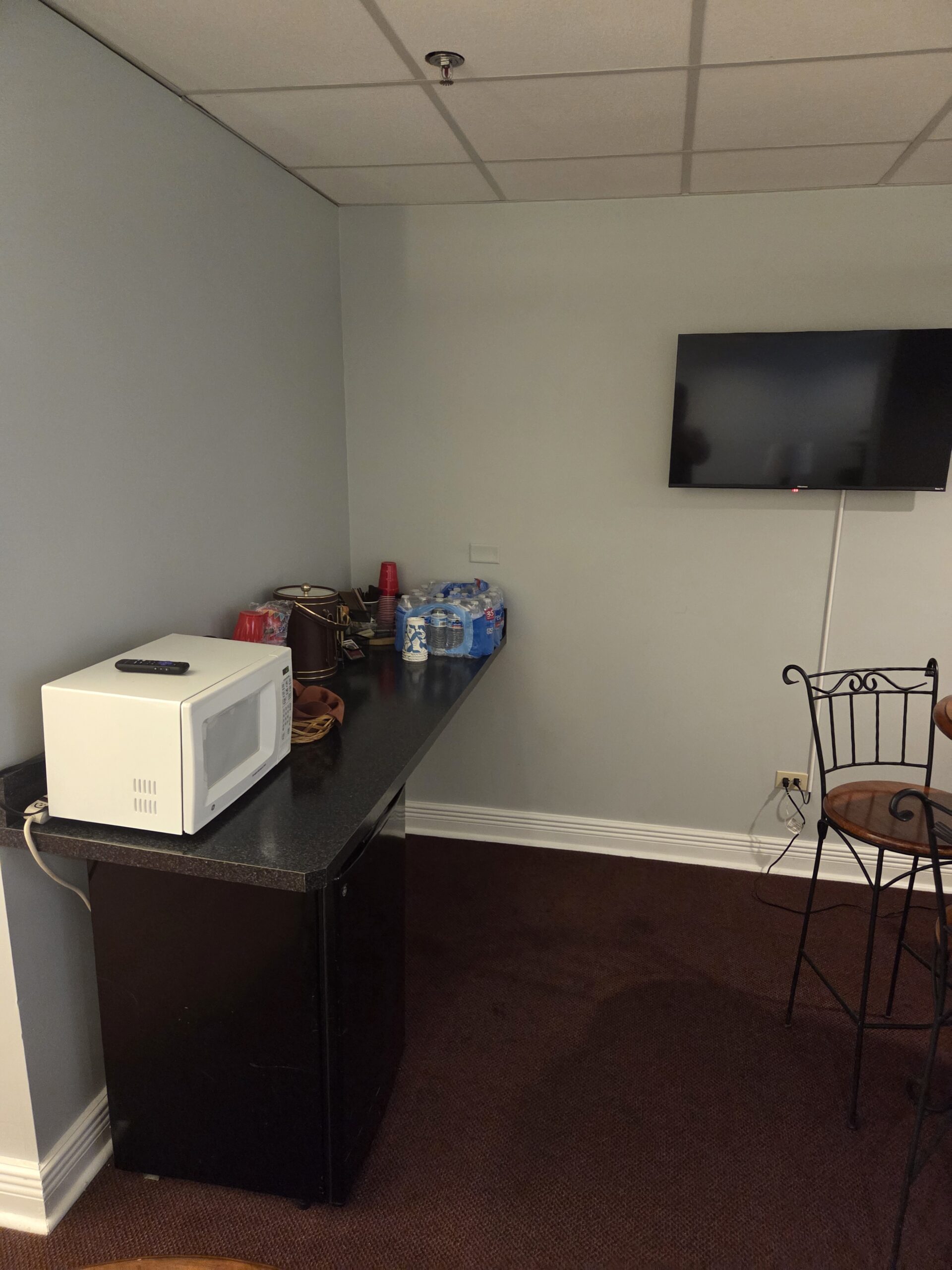

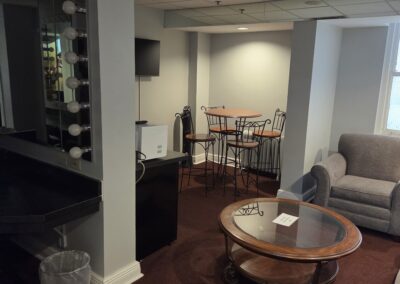

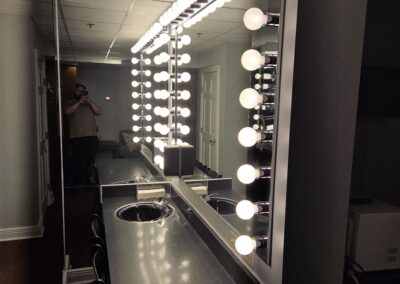

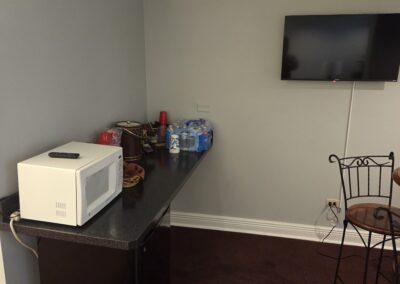

• 1 each Star’s Dressing Room with dressing/make-up area, sink, shower, lavatory, seating area, dining space, capacity for 2 people Stage Right 1 flight up

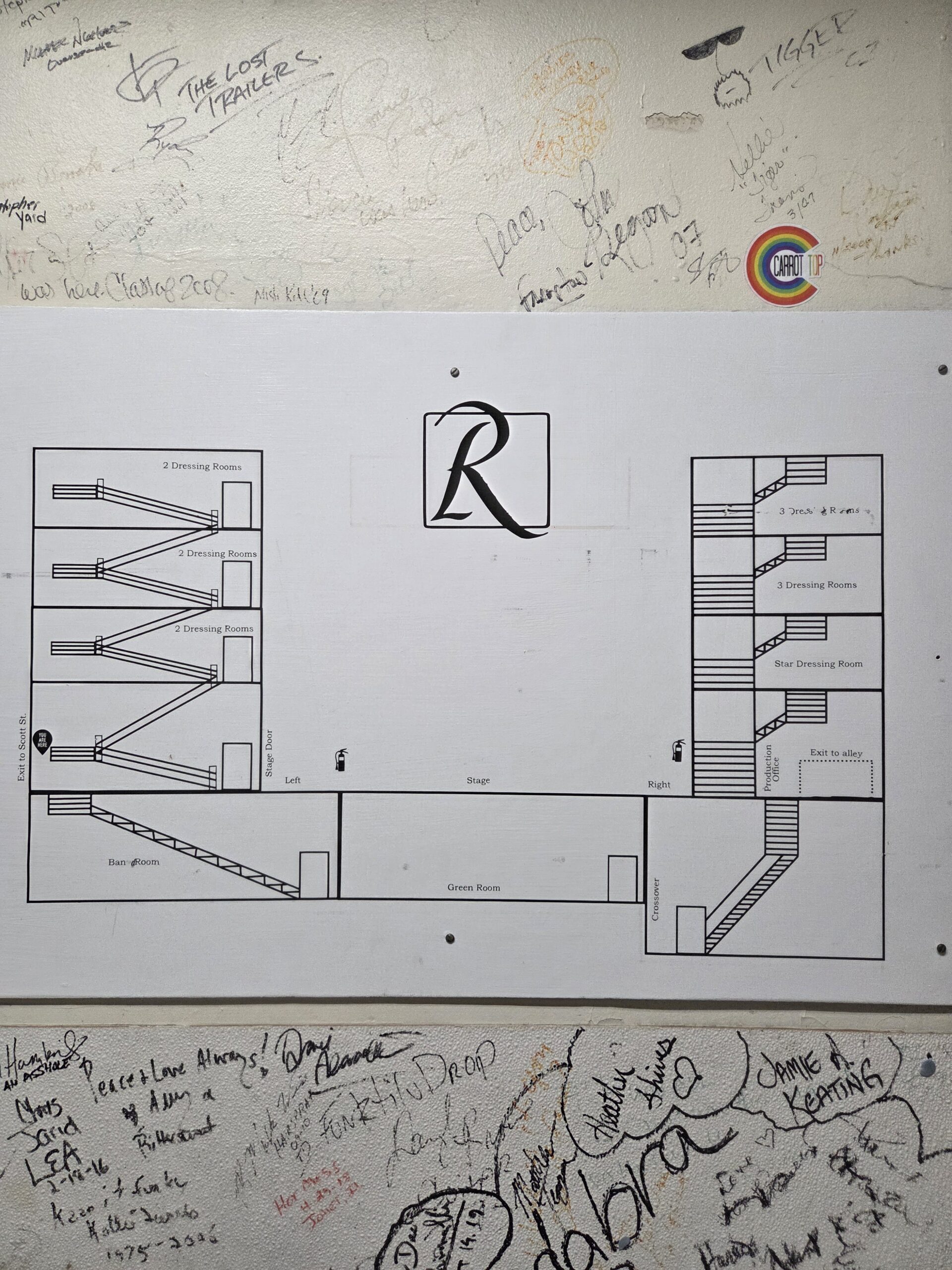

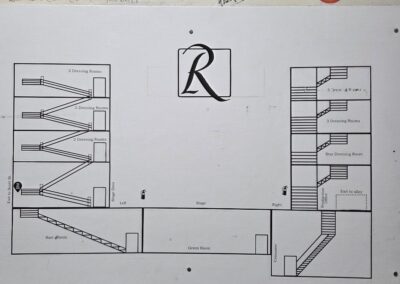

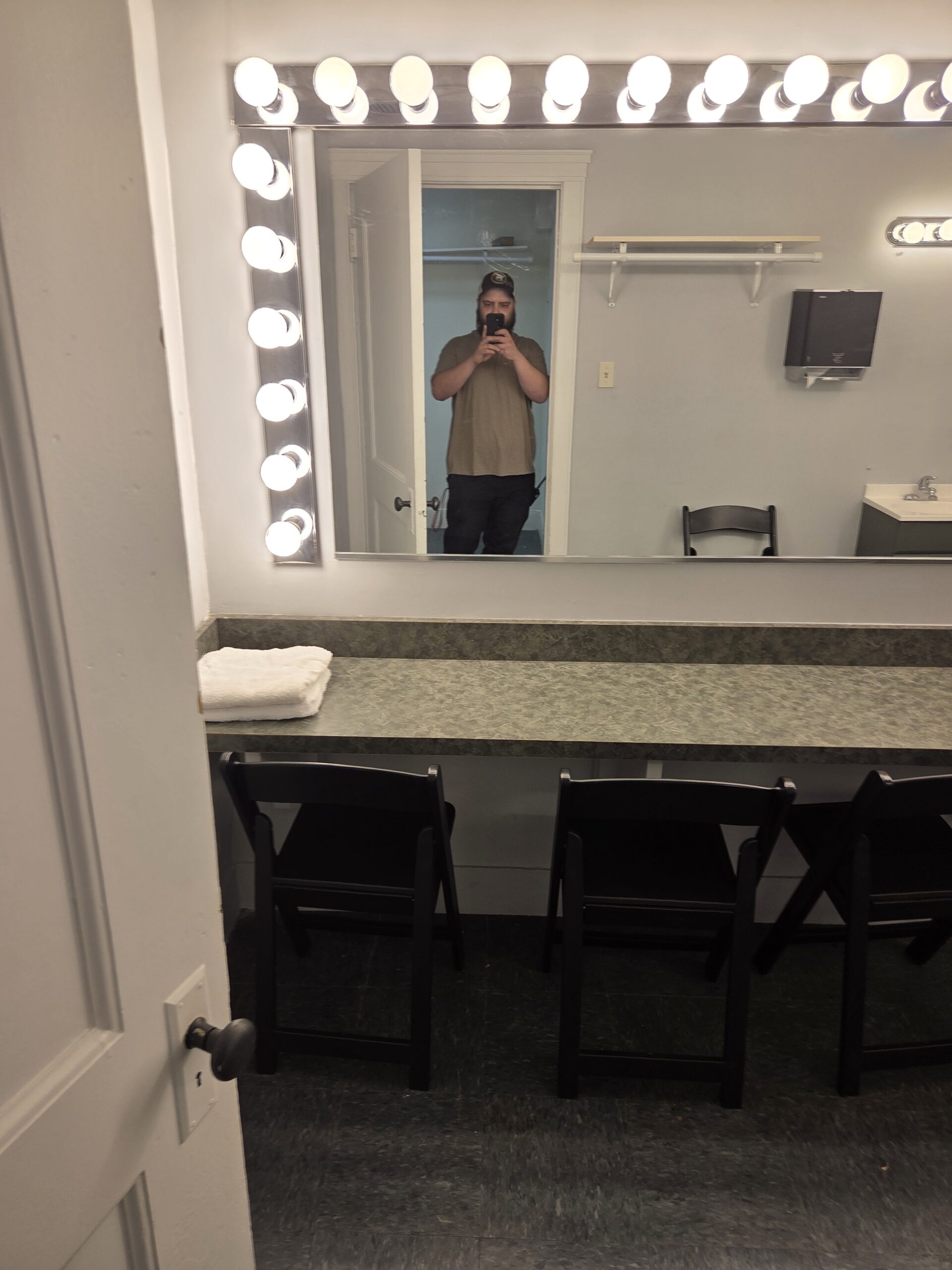

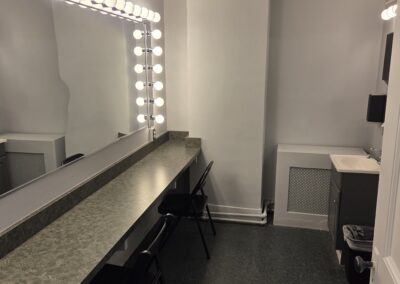

Stage R

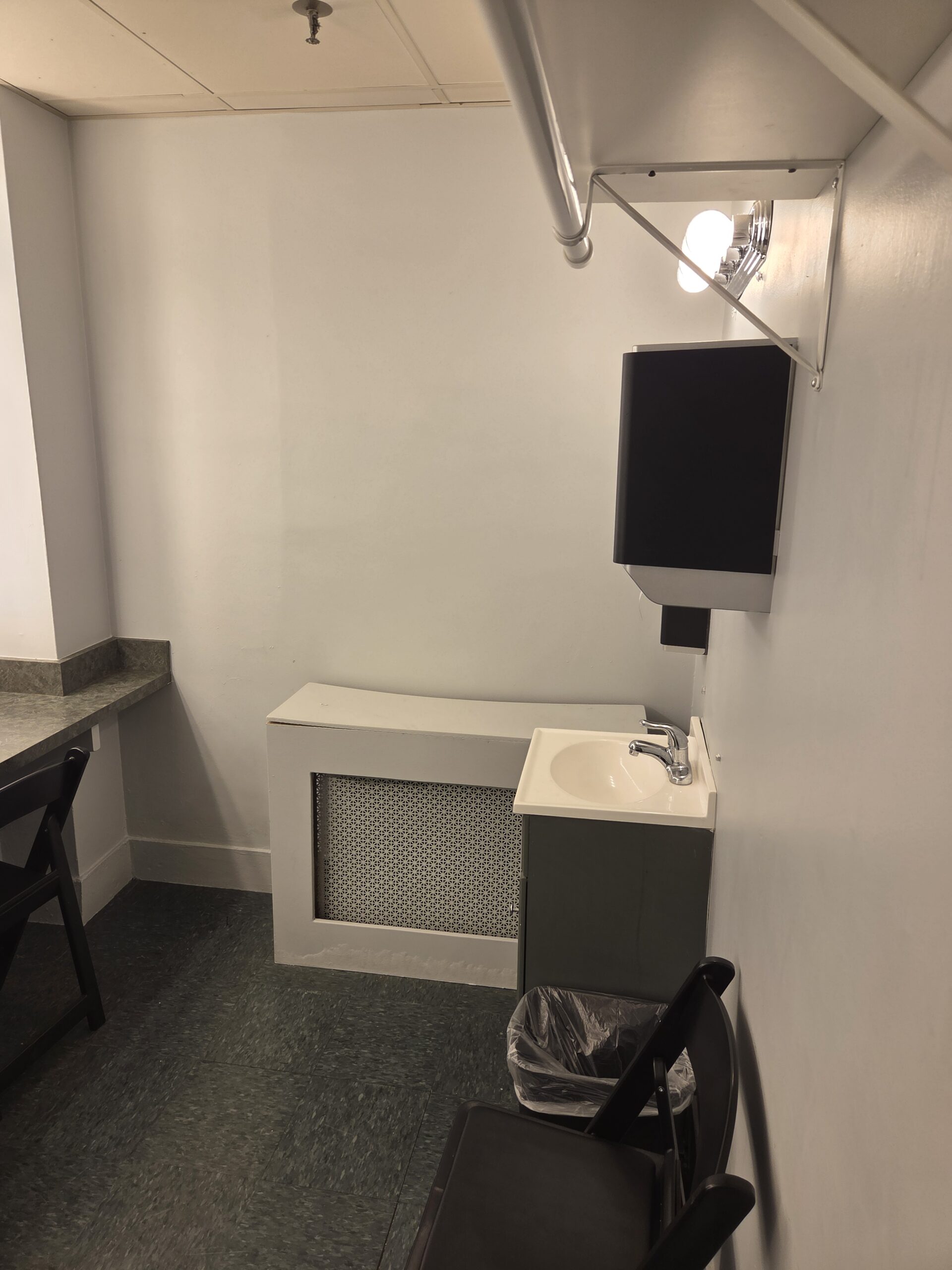

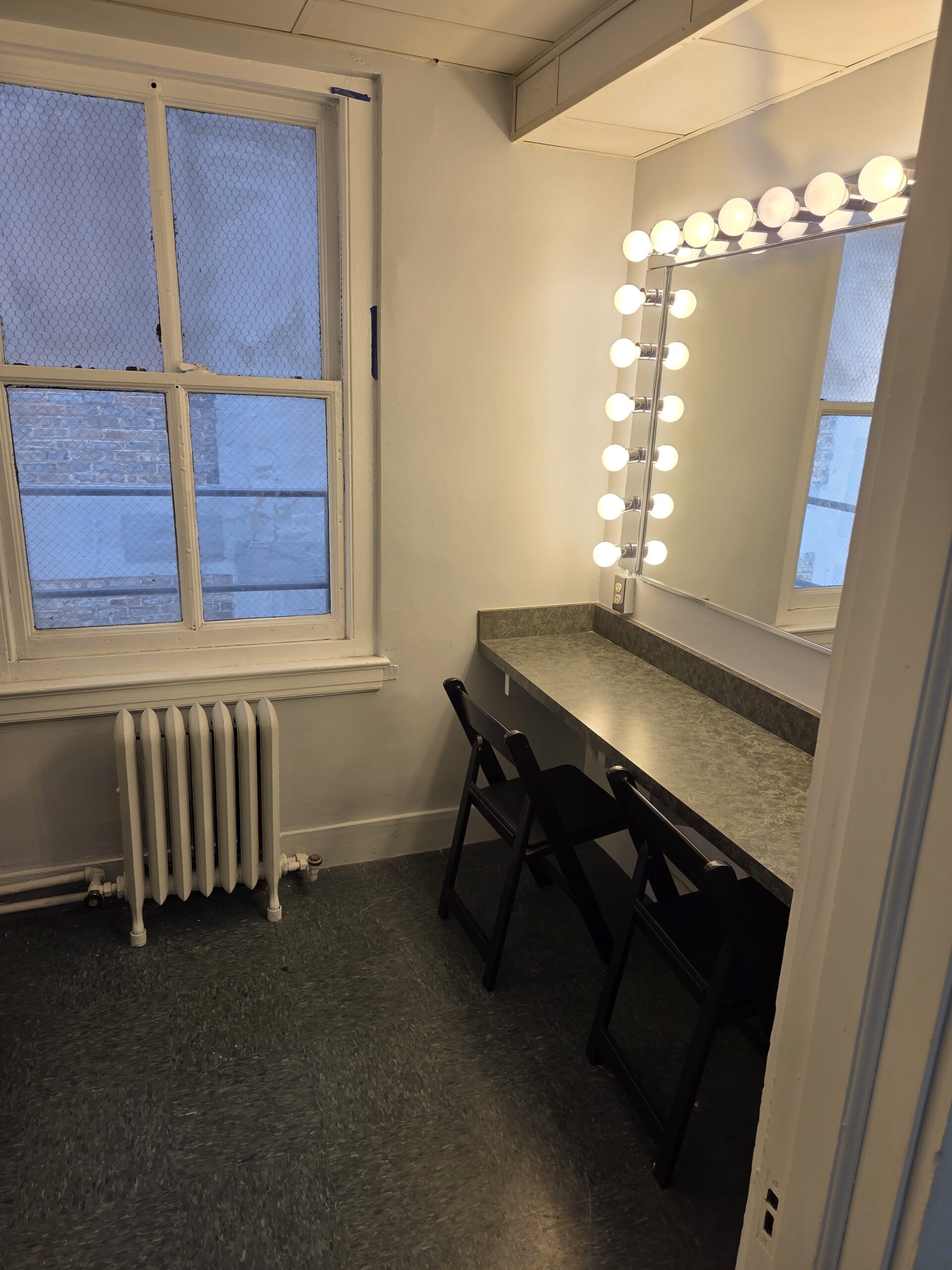

Stage level Production Office/dressing rm 1-2 persons w/sink, shower, & toilet
3rd floor w/sink, shower, & toilet
R3A – 5 persons
R3B – 3 persons
R3C – 6 persons
4th floor w/sink, shower, & toilet
R4A – 6 persons
R4B – 5 persons
R4C – 6 persons

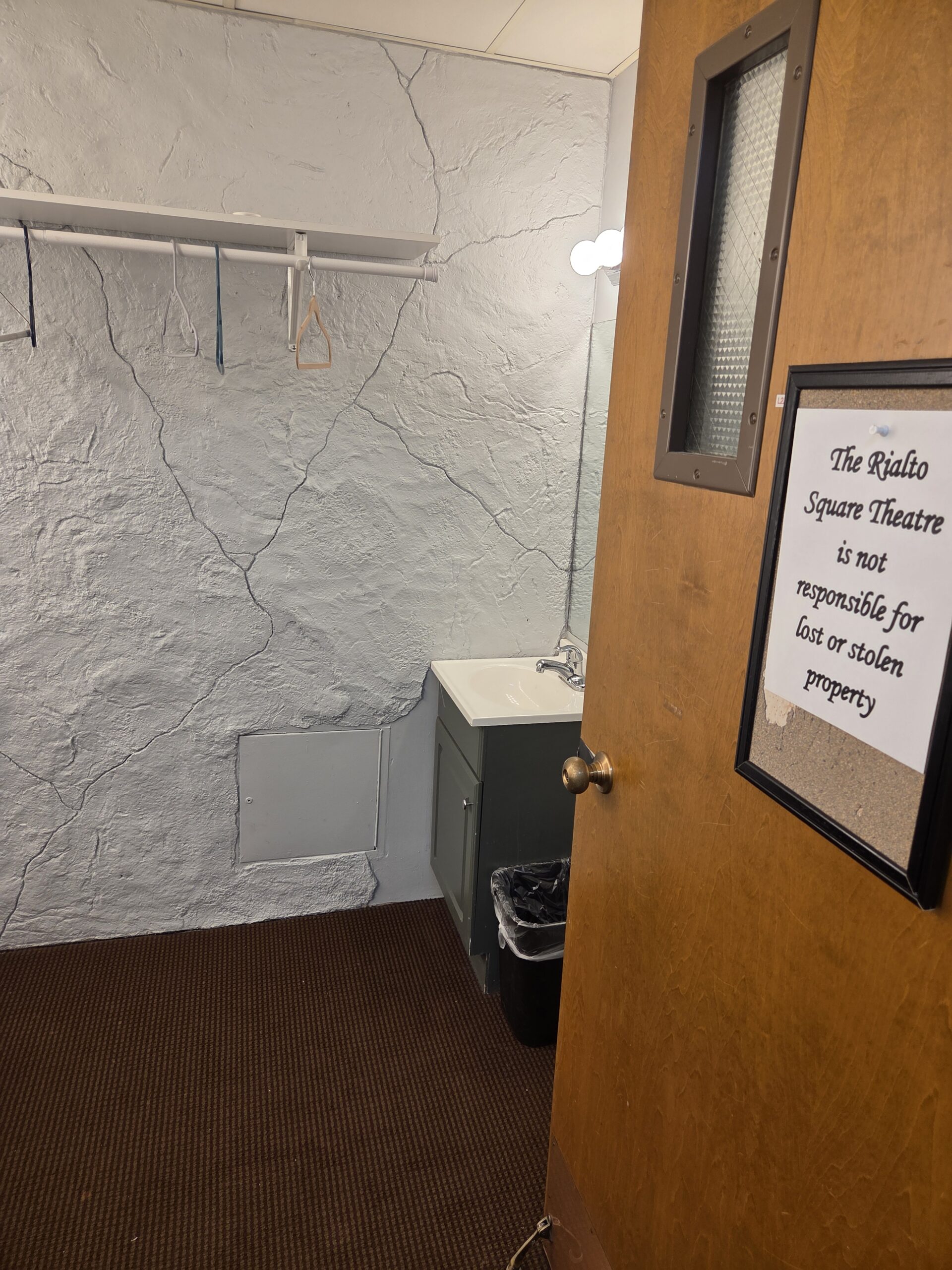

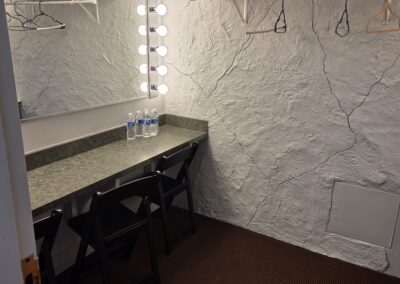

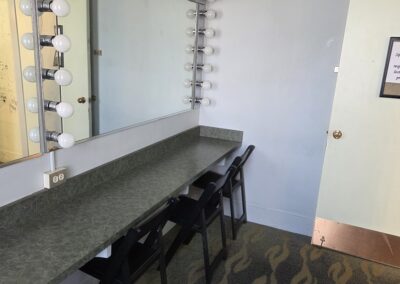

Stage Left

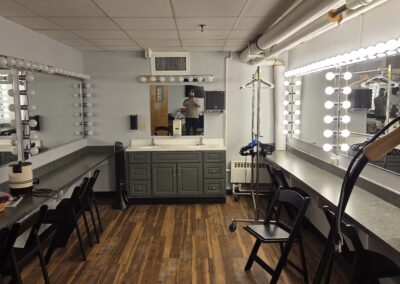

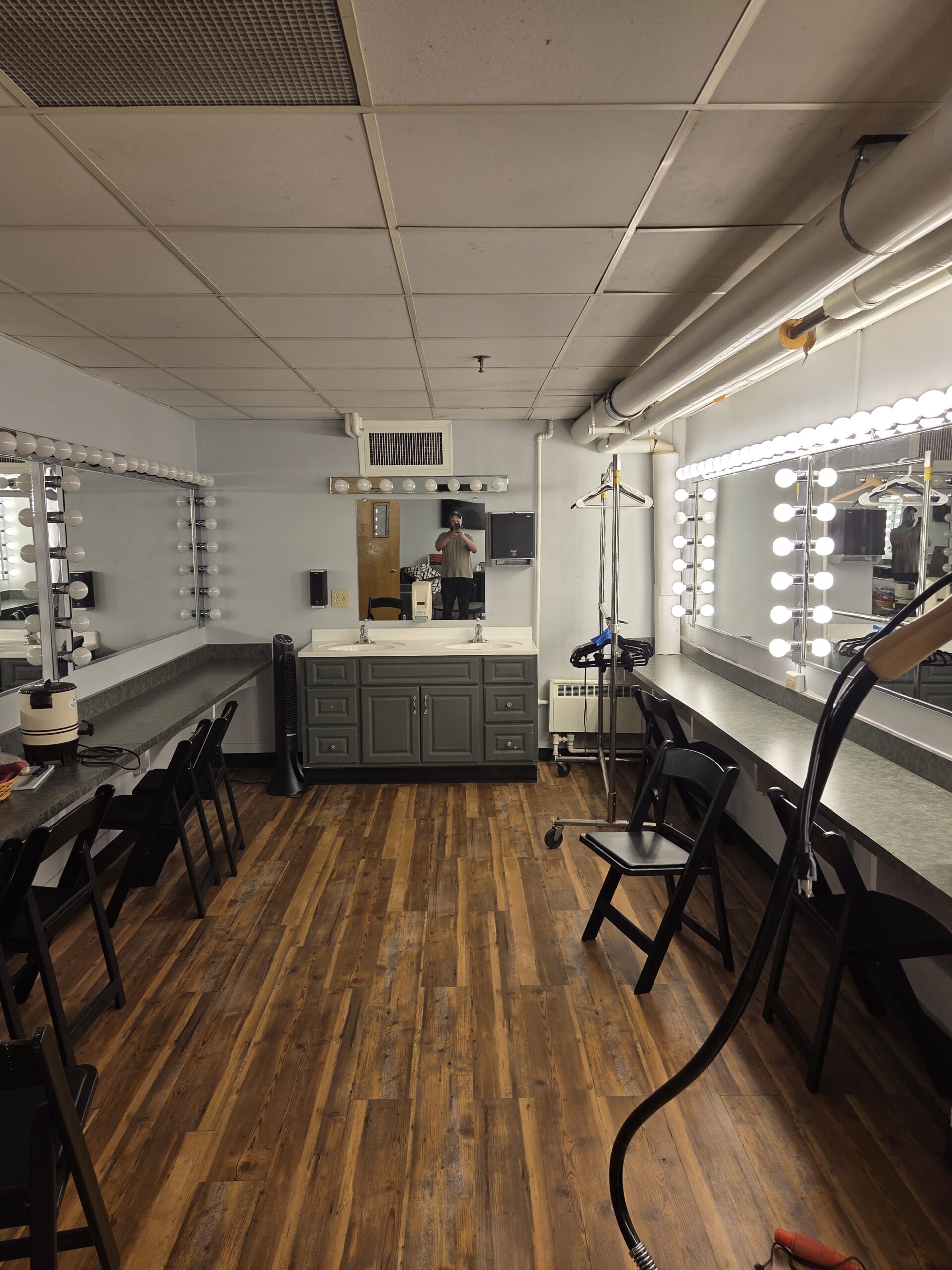

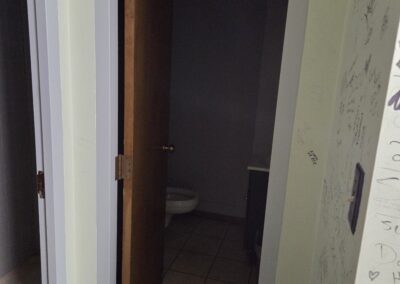

below stage Band room/Dressing room w/sinks, toilets – 28 persons
below stage Green Room/Dressing room w/sinks, toilets – 30 persons

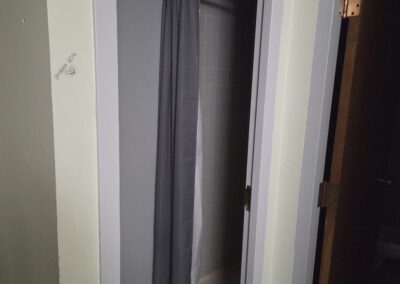

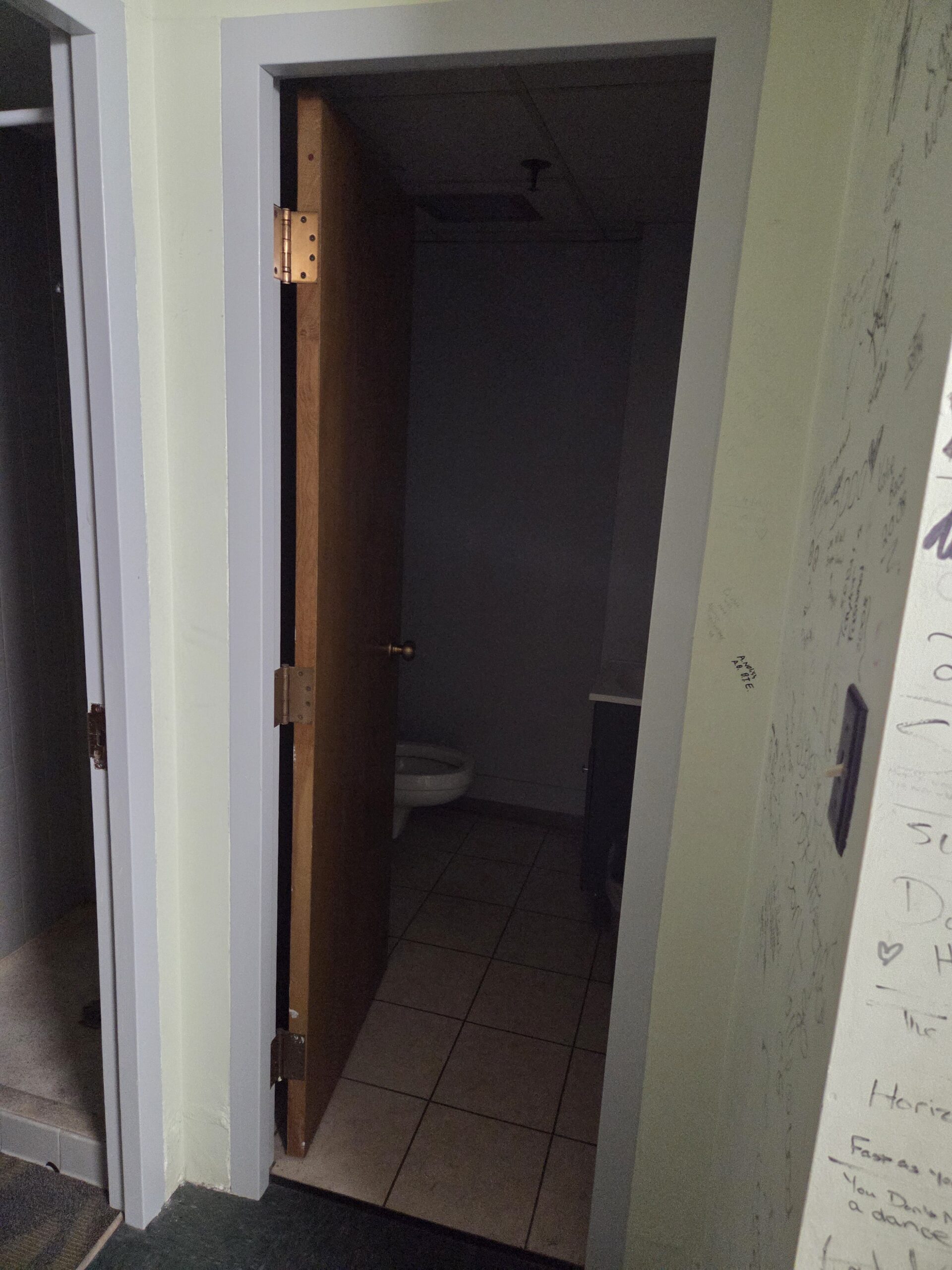

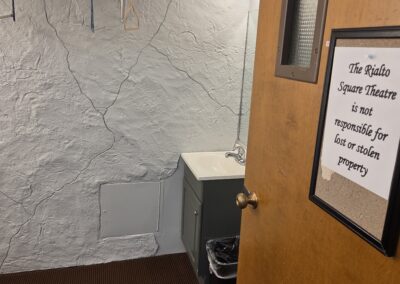

2nd floor w/sink, shower, & toilet
L2A – 3 persons
L2B – 6 persons
3rd floor w/sink, shower, & toilet
L3A – 3 persons
L3B – 5 persons
4th floor w/sink, shower, & toilet
L4A – 3 persons
L4B – 6 persons

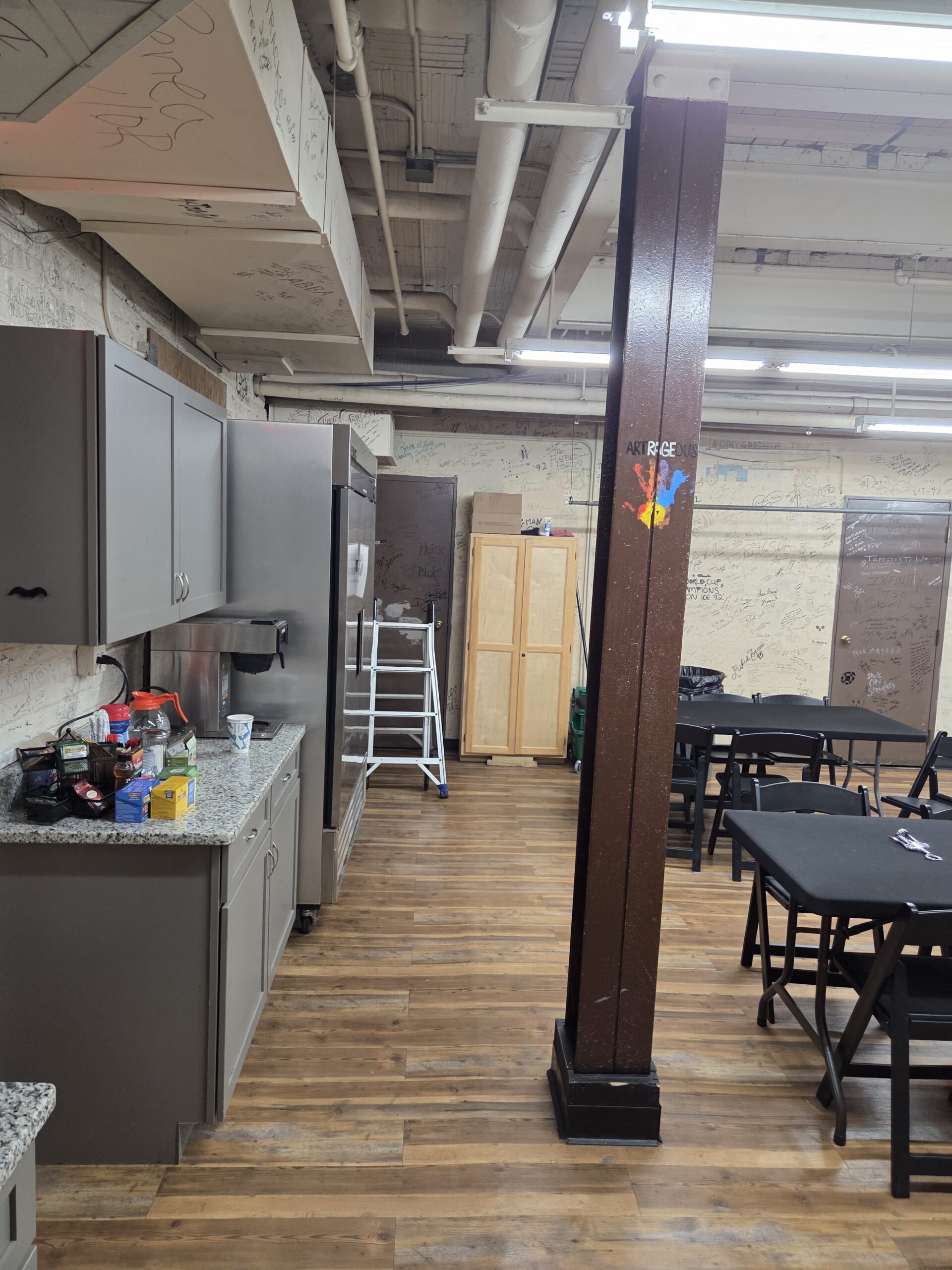

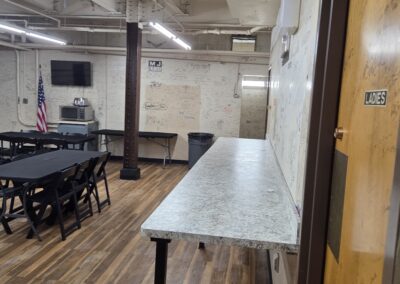

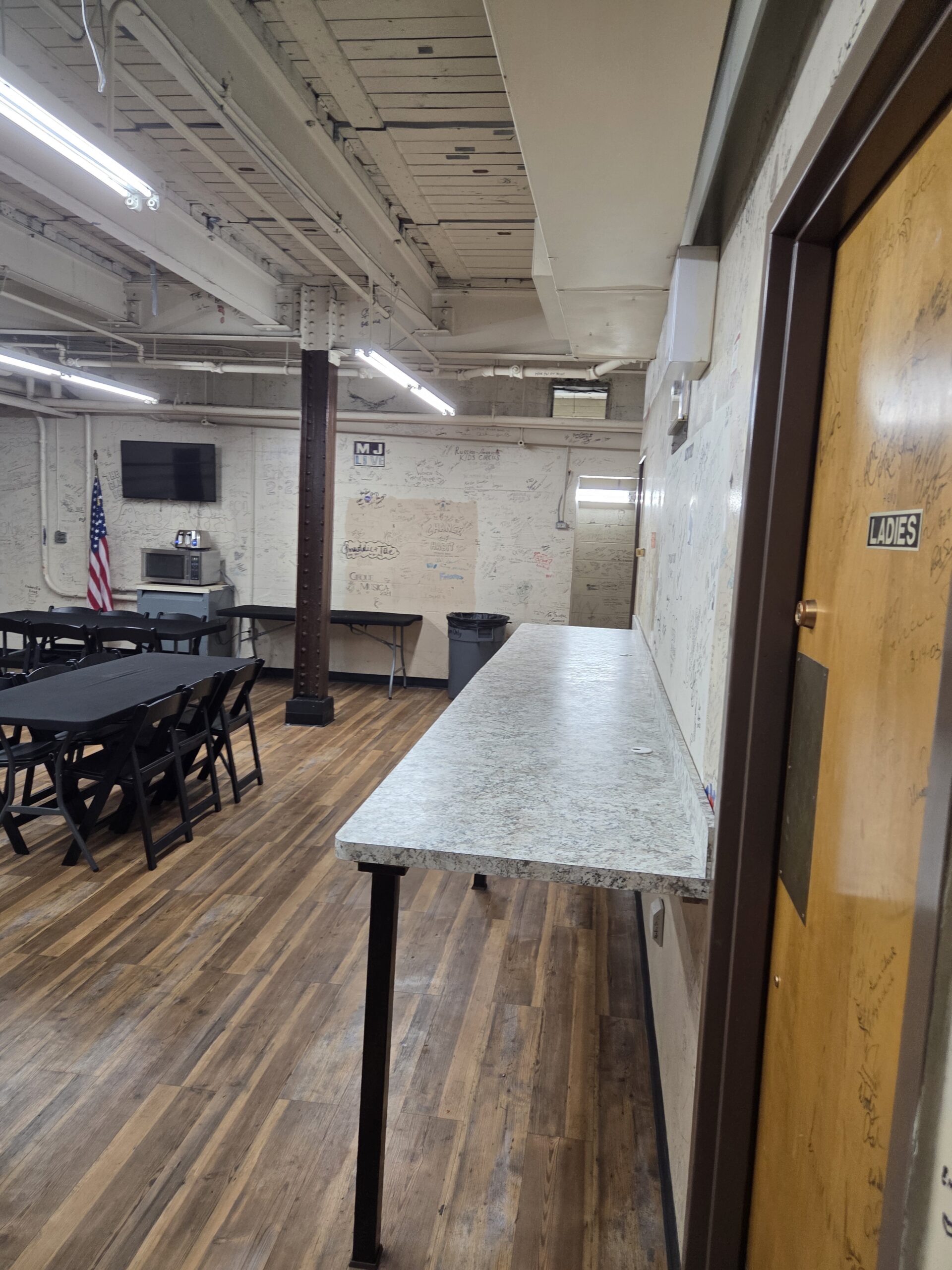

Green Room

• Meal Capacity: 30 at a seating
• Located under stage
• Access from orchestra pit, SR or SL
• 7 8’ tables
• 30 + chairs
• Cabinets and sink
• Refrigerator
• Microwave
• Dishwasher
• Lavatory
• Additional Costume Bars
• Used for dining, meetings, wardrobe, catering, storage, under stage crossover

Electrical Info

Company Switches Located SL, 15 feet off of stage

• Service: 400 amp, 3-phase and 100 amp, 3-phase
• Requirements: 30’-0” of feeder cable off SL; bare end connection or CAM-Lok

Isolated Service for Sound

• SR, 10 feet off of stage
• Service: 200 amp, 3-phase;
• Requirements: bare end or cam-lok

Lighting Info

ETC Gio
ETC Express 48/96 Control Board

Dimmer Per Circuit System

• 2.4K dimmers: 480 each

House Lights

• Control Location at Light Booth in Rear of Balcony, Unobstructed View
• Independent Time-Fade System, -15 seconds.

Grounded Stage Pin Connectors 2P&G

Color Frame per Instrument

Lamps Primarily Roscolux Color
Rialto Standard Light Plot
Rialto Instrument Schedule
Rialto Lighting Patch Sheet

• Pattern Holders: 60 each
• 8’-0” PAR56 3-circuit, 3 lamps per circuit: 12 each
• Irises: 2 each
• Xenon Super-Troupers, 1600w: 2 each
• Xenon Super-Troupers, 2000w: 1 each [in house but a rental fee applies]

FOH Fixed Equipment

• 1st Cove: 24 ETC Source 4’s 14 degree
• 2nd Cove: 14 ETC Source 4’s 10 degree
• Box Booms: 6 X 9 Dual Lens, 1K: 1 each side, 4 SR and SL ETC Source, 4’s 19 degrees, 4 SR and SL ETC Source 4’s 26 degrees

Iron Inventory

• Side Light Booms: 14’-0”, 50 pound bases, 1-1/2” diameter pipe: 2 each
• Side Arms: 30 each

•
•
•
•
•
•
•
•

Sound Info

Sound (Located in house balcony)

• Beringer 32X Mixer
• Sound Location in House Left Balcony
• BGW Amplifiers, Model 2500 & Model 750
• Ashley Crossover, Model 24DB XR1001
• Monitor Amp Channels, 2 each
• Renkus Heinz Speakers, SR and SL of Proscenium
  IC16-8-RD Advanced Steered Beam Technology
• JBL Speakers Models 2360, 2482, 2202, Center Cluster
• Yamaha Wedge Monitors, 2 each
• Community Wedge Monitors: 6 each
• Yamaha Portable Side Fills: 2 each
• JBL Portable Side Fills: 2 each

Microphones

• Shure SM58, 7 each
• Shure SM57, 4 each
• Shure SM81, 2 each
• Wireless Shure SLX4 receiver, 7 each
• Wireless Shure SLX2/SM58 transmitter, 3 each
• Wireless Shure SLX1/WL93 bodypack transmitter, 5 each
• NADY uhf wireless handheld system, 1 each
• Samson VT3L VHF lavalier system, 1 each
• EV-RE-10, 6 each
• Crown PZM, 6 each
• Crown PCC, 3 each

Marantz CD Player

Sound/Backline
Gand Concert Sound
1107 Mark St,
Elk Grove Village IL 600071
630-509-2457 (phone)

•
•
•
•
•
•

Communication System

Clear-Com Intercom System

• Model CS200K
• Wired Headsets: 7 each
• Communications between SL, SR, Light Booth, Sound Board, Fly Rail, Dressings Rooms, FOH
• 4 wireless headsets

Show Monitors

• dressing rooms
• green room
• orchestra room
• backstage left stairwells
• production office
• FOH

Other Info

• Eiki 4500 lumens digital projector- front and rear projection
• Phillips Blu-ray
• 9’ x 12’ screen – front and rear projection
• 52’ movie screen

Lighting see Lighting & Controls
For additional see Vendors

Lighting
Litronicx Ltd.
1765 W. Cortland Court
Suite M
Addison, IL 60101-4237
630-620-7874
630-620-7877 (FAX)
www.Litronicx.com

Sound/Backline
Gand Concert Sound
1107 Mark St,
Elk Grove Village IL 600071
630-509-2457 (phone)
630-509-2942 (FAX)
www.gand.com
attention: Tim Swan

RME Audio Video, Inc.
2405 Essington Rd
Suite B #133
Joliet, IL 60435
815-671-4097 (office phone)
www.facebook.com/rmeav
www.rmeav.com

Parking for Rialto Square Theatre LOAD IN.

The photos are a view looking North on Scott St from our fire escape. Scott Street is one way Northbound.

Semis & buses go past the theatre and around the next block [L on Cass, L on Chicago, L on Clinton, then R onto Scott going the wrong way for 1/2 block]

Then pull into the 1st drive to position vehicles with loading doors toward the North, as pictured below, for access into the Stage Door at the rear of the lefthand bus.

Then you may drive onto the gravel to align vehicles, up to 3 as shown. We generally ask the Joliet Police Dept to block off parking on our side [West side] of Scott Street with cones and a Bagged meter. This is for other audio or lighting suppliers and support vehicles.
